Schunk PGN-Plus 300-2 Universal gripper
Schunk PGN-Plus 300-2 Universal gripper
Schunk PGN-Plus 300-2 Universal gripper
Schunk PGN-Plus 300-2 Universal gripper
Schunk PGN-Plus 300-2 Universal gripper

Schunk PGN-Plus 300-2 Universal gripper

$ 3,499 99
Schunk PGN-Plus 300/2 300-2 Universal gripper Size: 300 pneumatic 40mm Stroke

Have a Question?

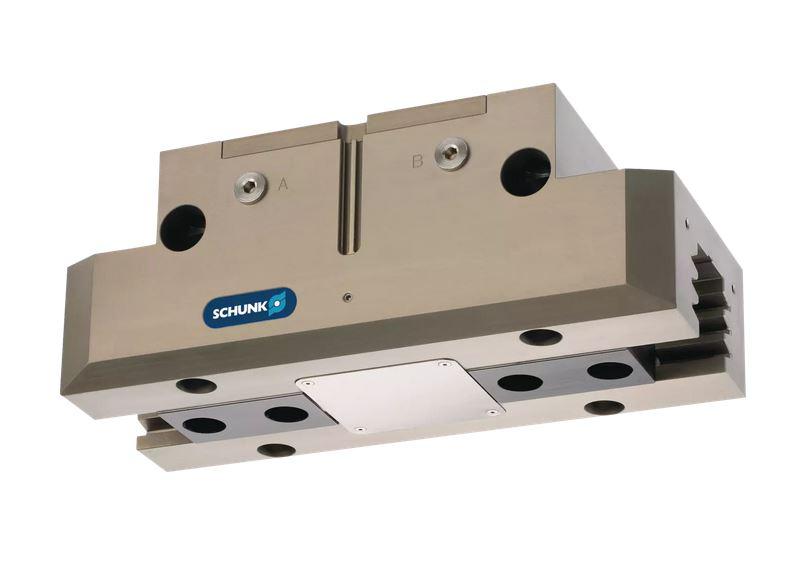

Schunk PGN-Plus 300-2

Universal gripper PGN-Plus, Size: 300, pneumatic

  • Stroke per jaw: 20 mm
  • Closing force: 10300 N
  • Opening force: 10800 N
  • Max. ambient temperature: 90 °C
Includes open/close sensors and fittings

MFG ID:  371156

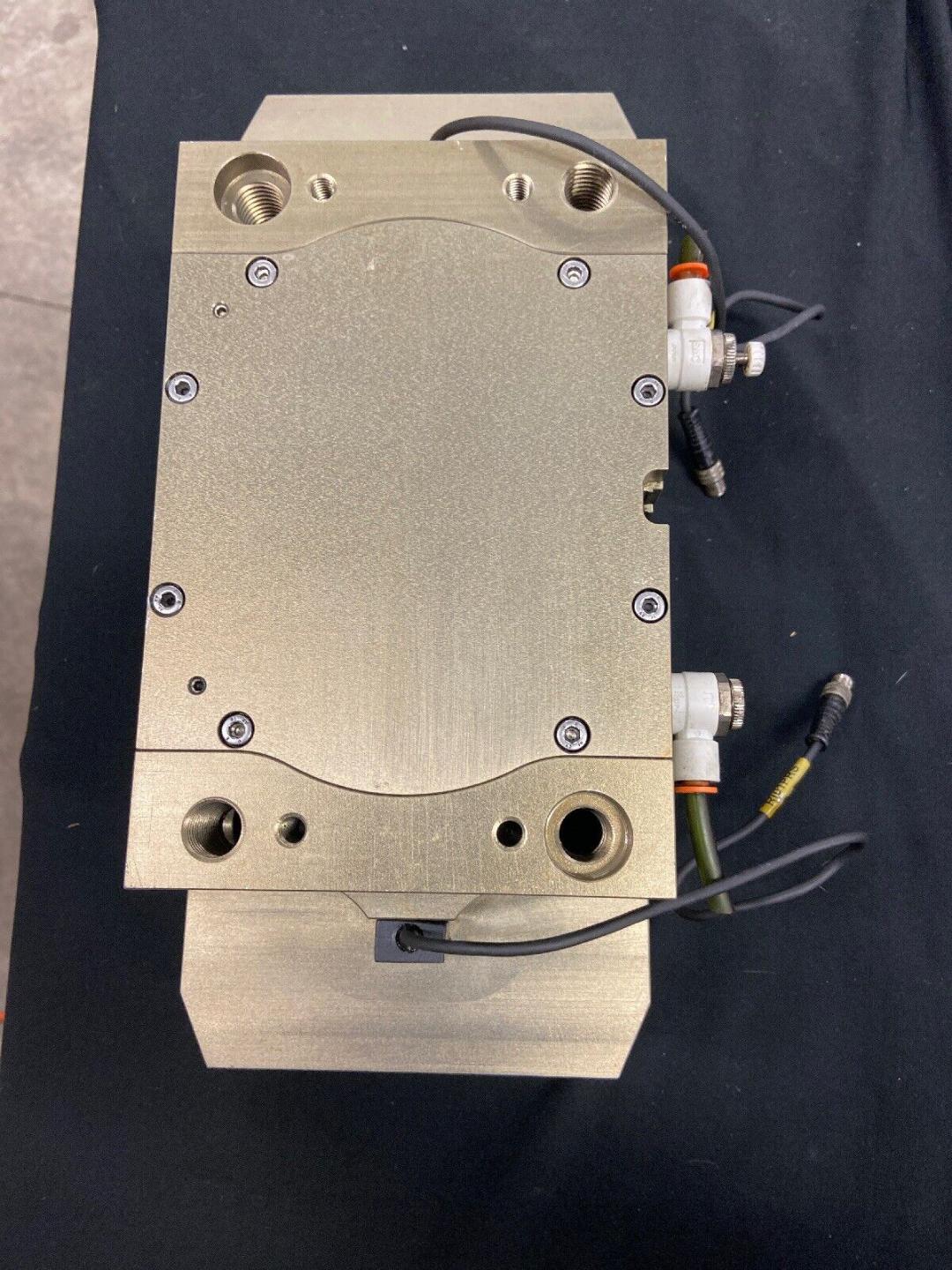

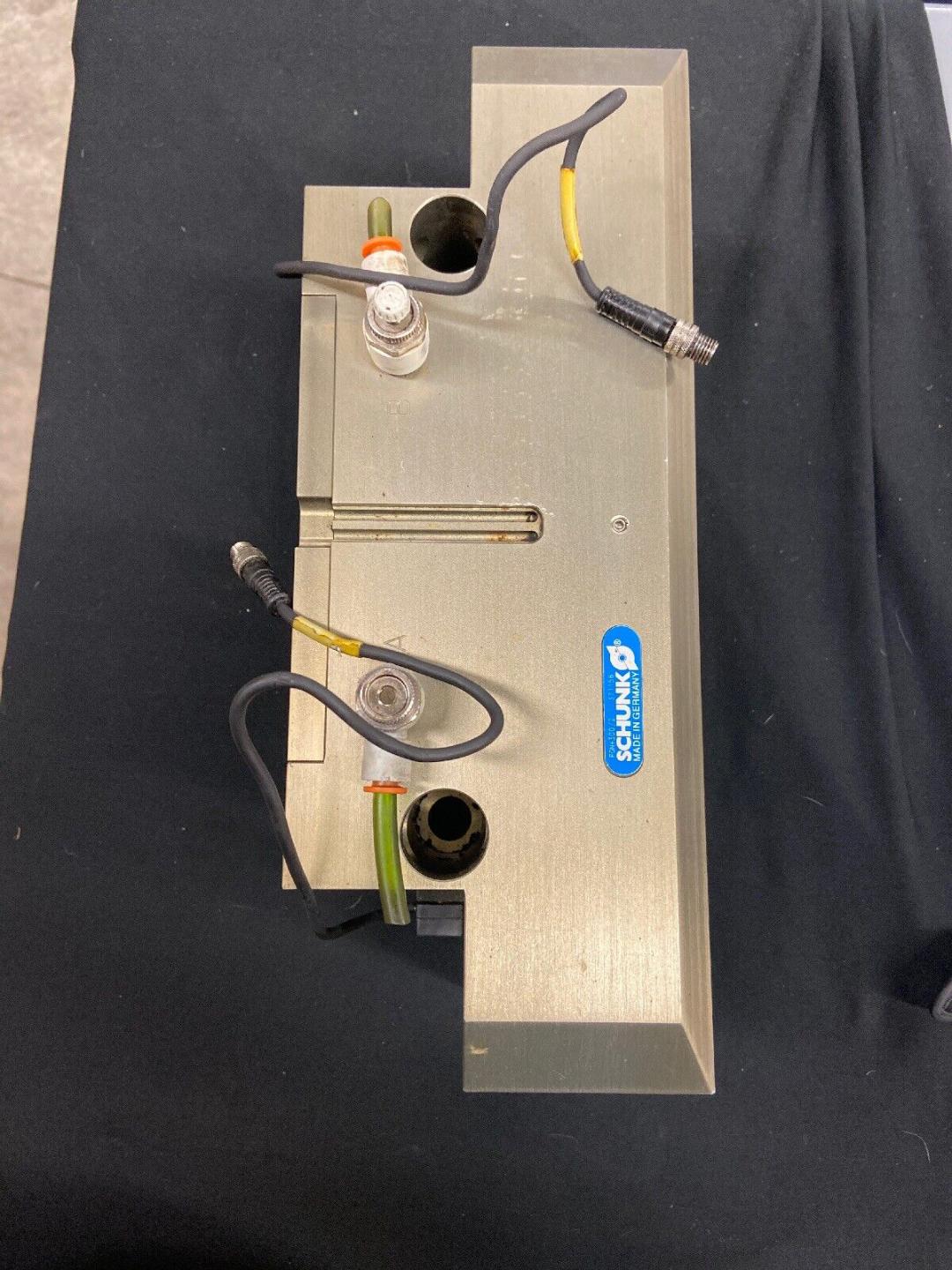

Gripper Installed but not used in production - great working condition

Technical data PGN-plus 300-2

Stroke per jaw [mm]                                                                              20
Closing force [N ]                                                                                   10300
Opening force [N]                                                                                  10800
Closing force (with finger lengths of 0 mm) [N]                               10879
Opening force (with finger lengths of 0 mm) [N]                             11440
Weight [kg]                                                                                              13.9
Recommended workpiece weight [kg]                                              51.5
Fluid consumption double stroke [cm³]                                            1040
Min. operating pressure [bar]                                                               2.5
Max. operating pressure [bar]                                                              8
Nominal operating pressure [bar]                                                       6
Min. air purge pressure [bar]                                                                0.5
Max. air purge pressure [bar]                                                               1
Closing time [s]0.5Opening time [s]                                                   0.5
Max. permissible finger length [mm]                                                 300
Max. permissible weight per finger [kg]                                            11.5
IP protection class                                                                                40
Min. ambient temperature [°C]                                                            5
Max. ambient temperature [°C]                                                           90
Repeat accuracy [mm]                                                                         0.05
Cleanroom class ISO 14644-1                                                              5
Length X [mm]                                                                                       320
Width Y [mm]                                                                                         140
Height Z [mm]                                                                                        122
Moment Mx max. [Nm]                                                                        400
Moment My max. [Nm]                                                                        400
Moment Mz max. [Nm]                                                                        250
Max. axial force Fz max. [N]                                                                8000
