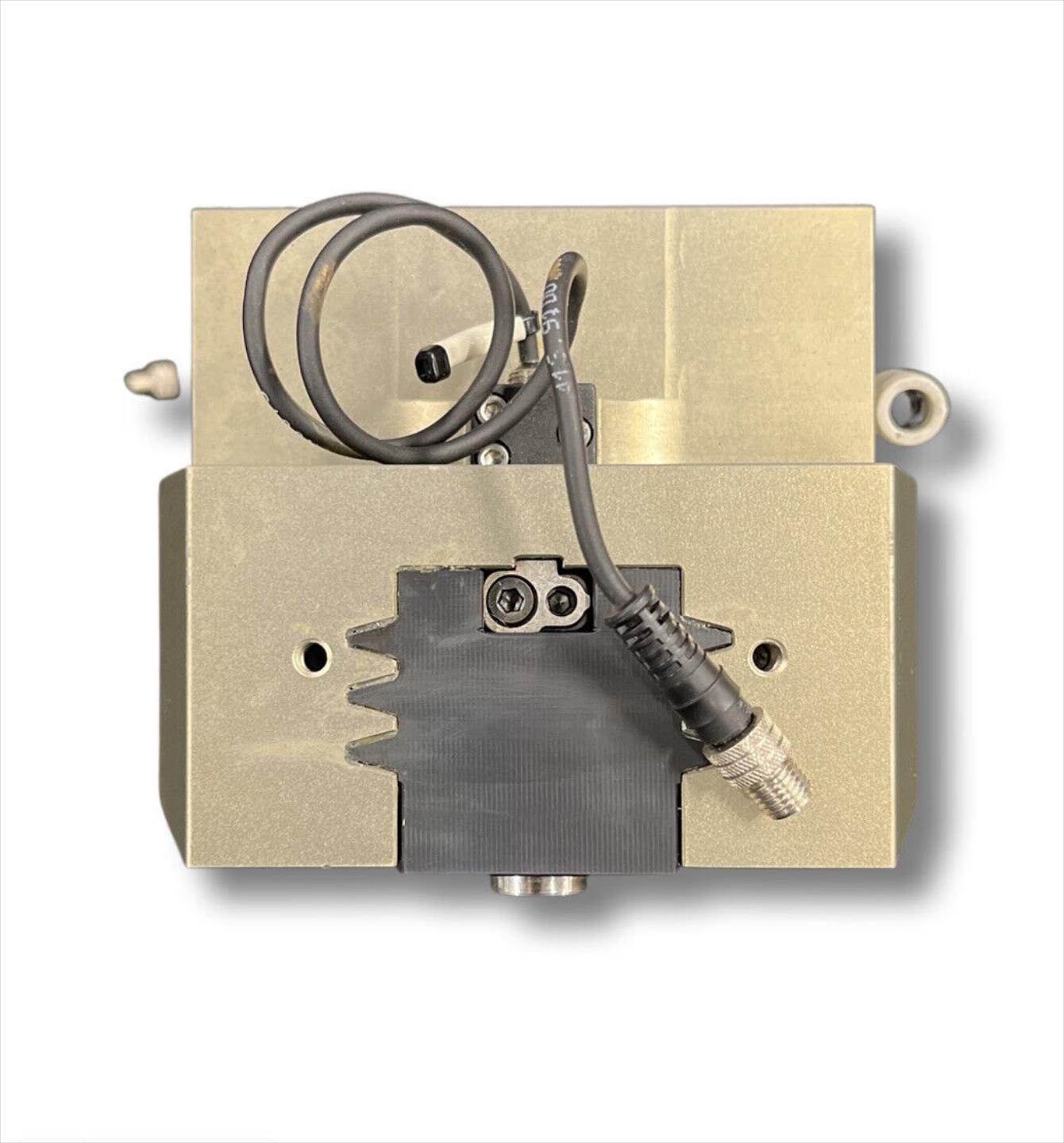

Technical data PGN-plus 240-1
Stroke per jaw [mm] 30

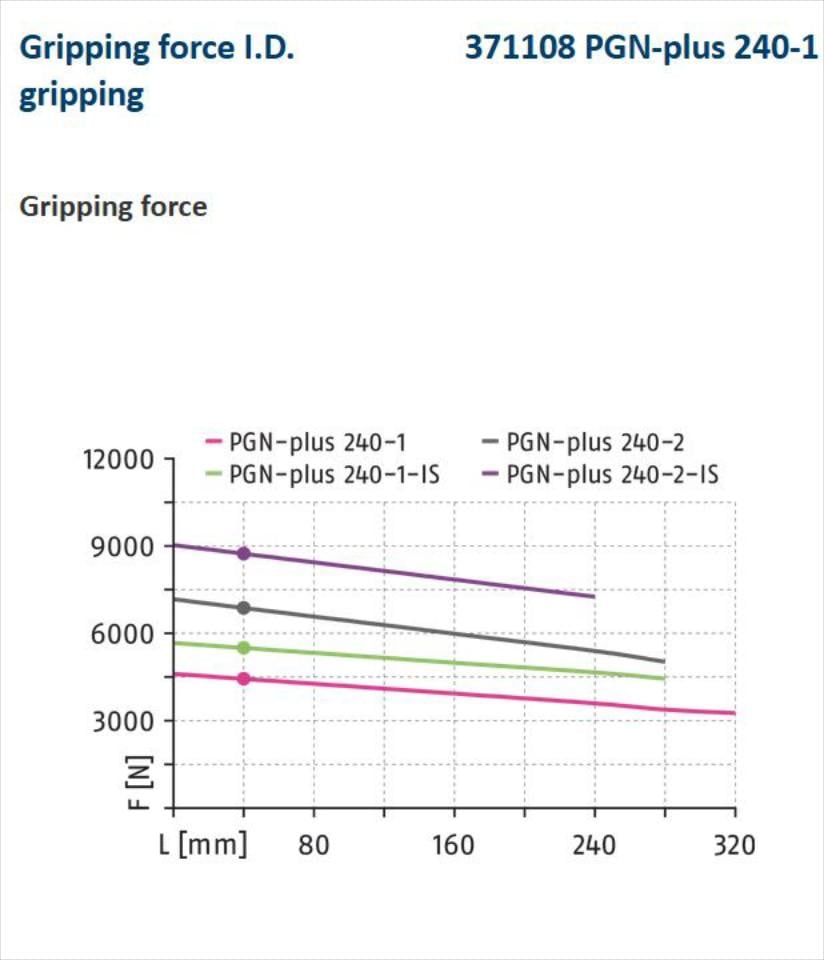

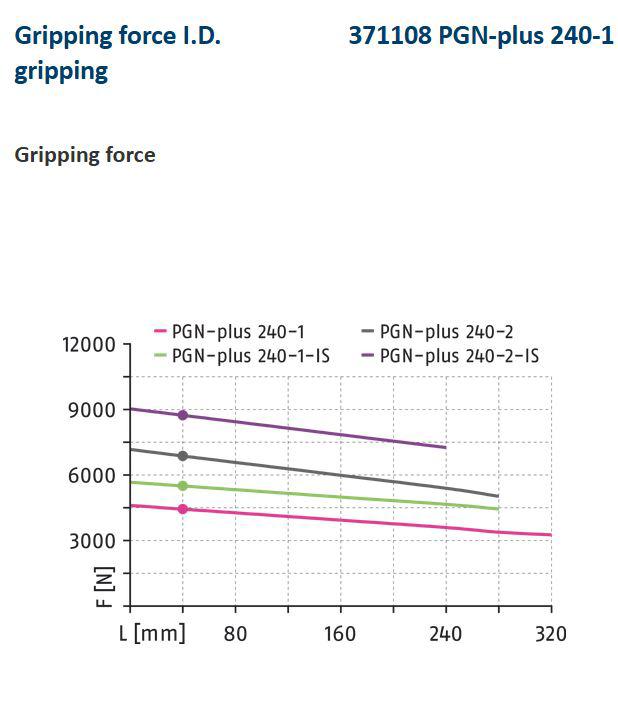

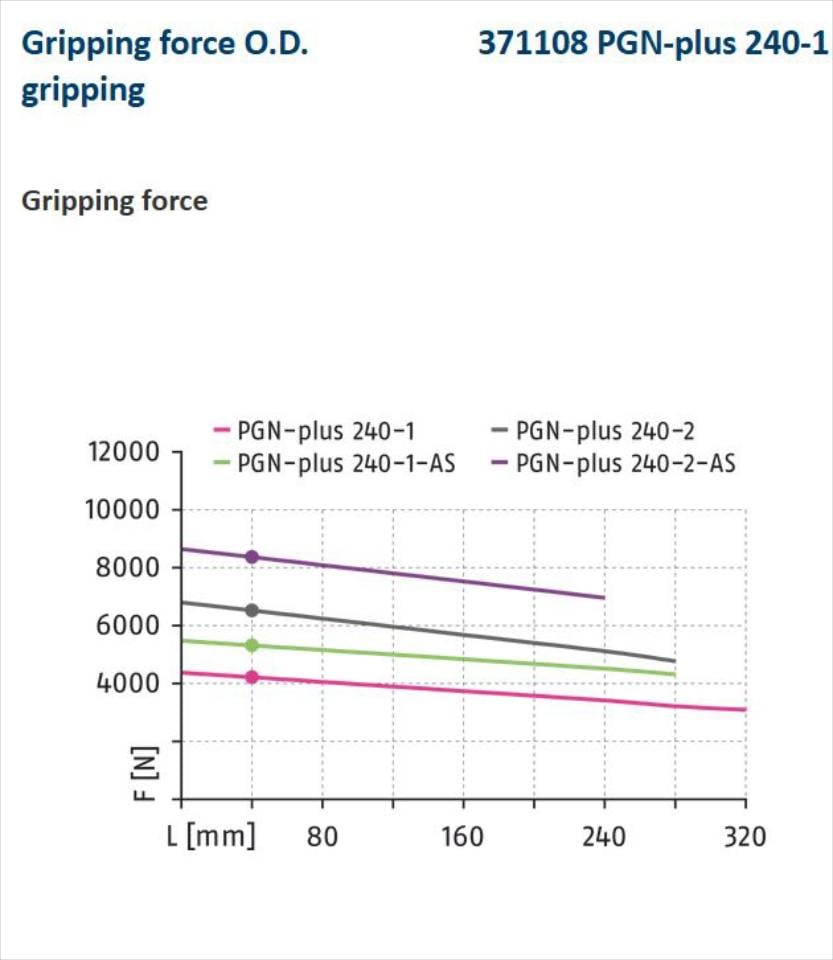

Closing force [N] 5300
Closing force (with finger lengths of 0 mm) [N] 5460
Min. spring force [N] 1100
Weight [kg] 12.6
Recommended workpiece weight [kg] 21.5
Fluid consumption double stroke [cm³] 810
Min. operating pressure [bar] 4
Max. operating pressure [bar] 6.5
Nominal operating pressure [bar] 6
Min. air purge pressure [bar] 0.5
Max. air purge pressure [bar] 1
Closing time [s] 0.35
Opening time [s] 0.65
Closing/opening time with spring [s] 0.55
Max. permissible finger length [mm] 280
Max. permissible weight per finger [kg] 8.5
IP protection class 64
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 90
Repeat accuracy [mm] 0.04
Cleanroom class ISO 14644-15
Length X [mm] 288
Width Y [mm] 115
Height Z [mm] 172
Moment Mx max. [Nm] 260
Moment My max. [Nm] 250
Moment Mz max. [Nm] 160
Max. axial force Fz max. [N] 6200
Item was installed for runoff only, did not run production

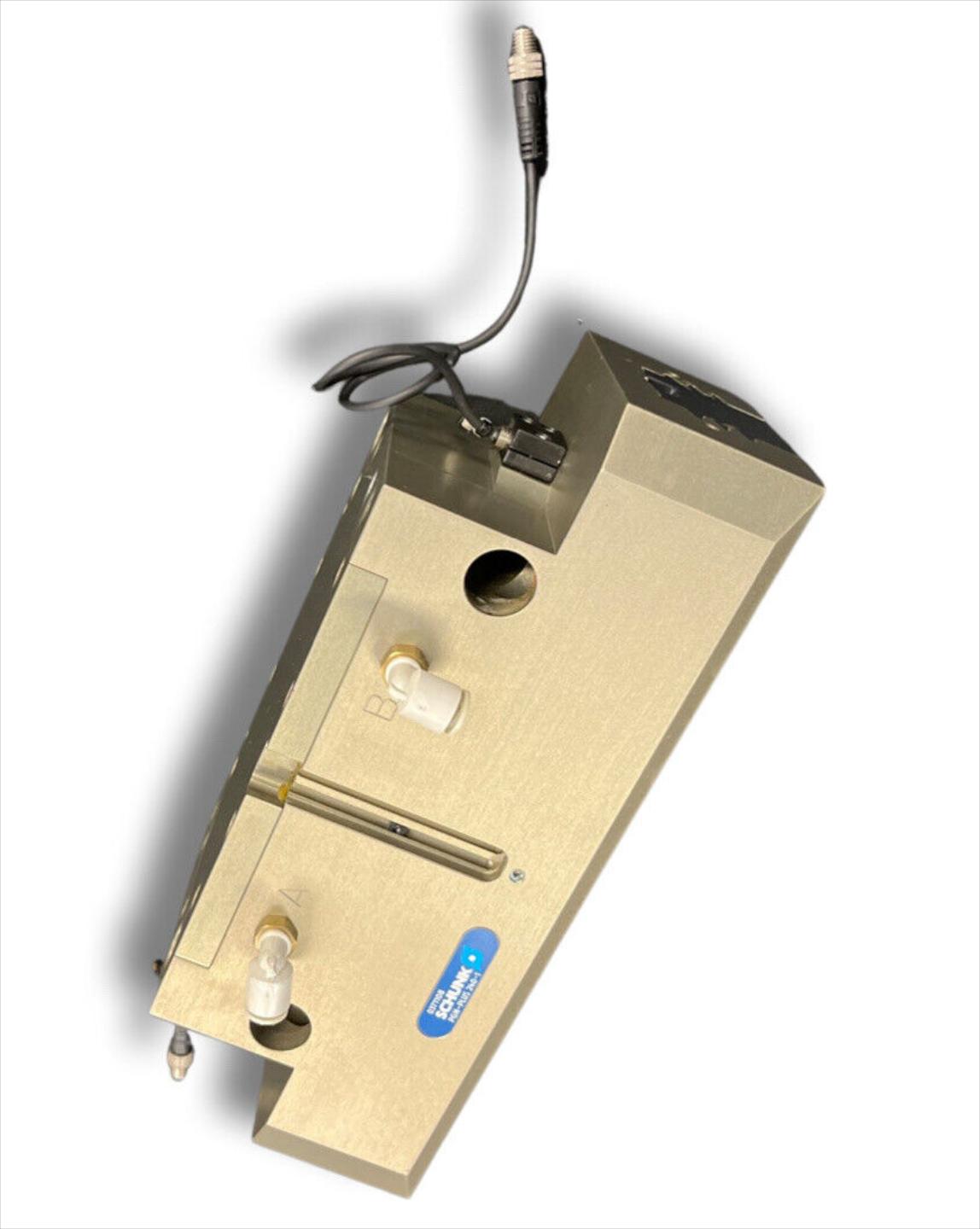

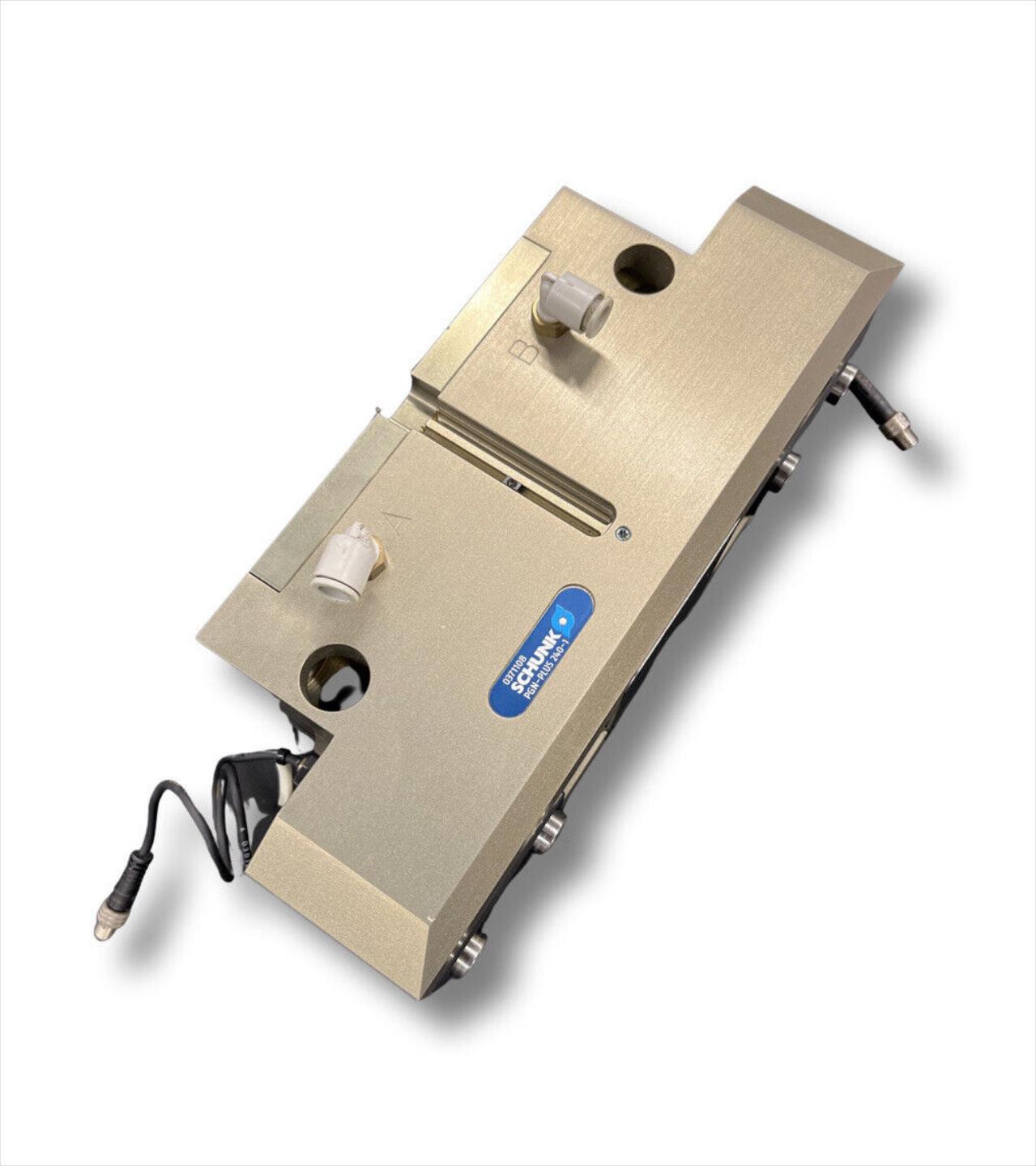

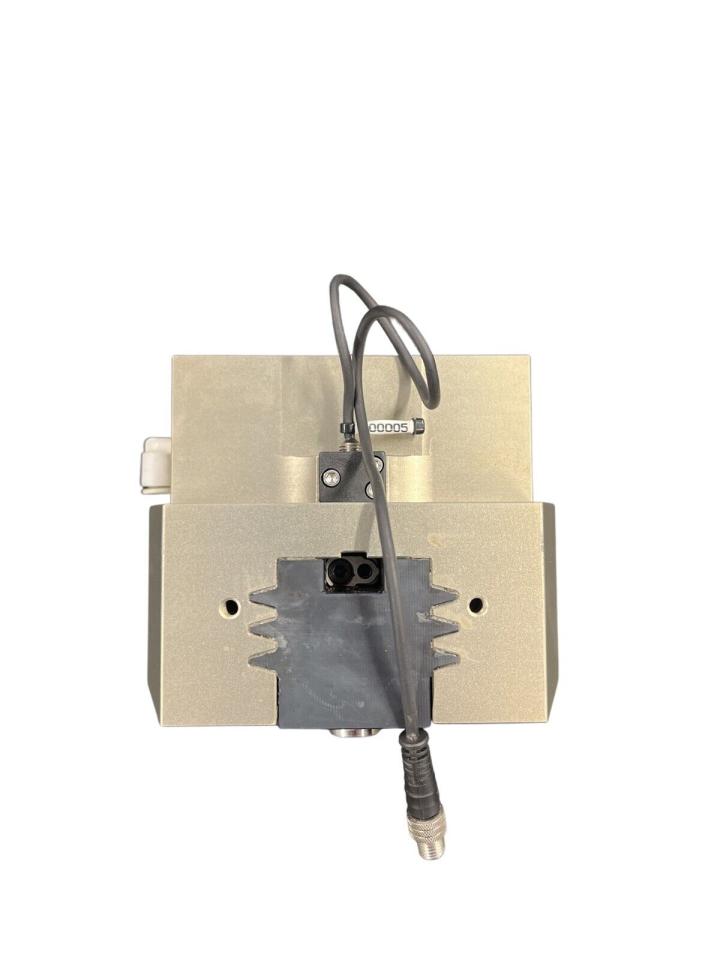

Includes fittings and Jaw open/close sensors with M8 quick disconnect
Return Policy
We do not accept returns
