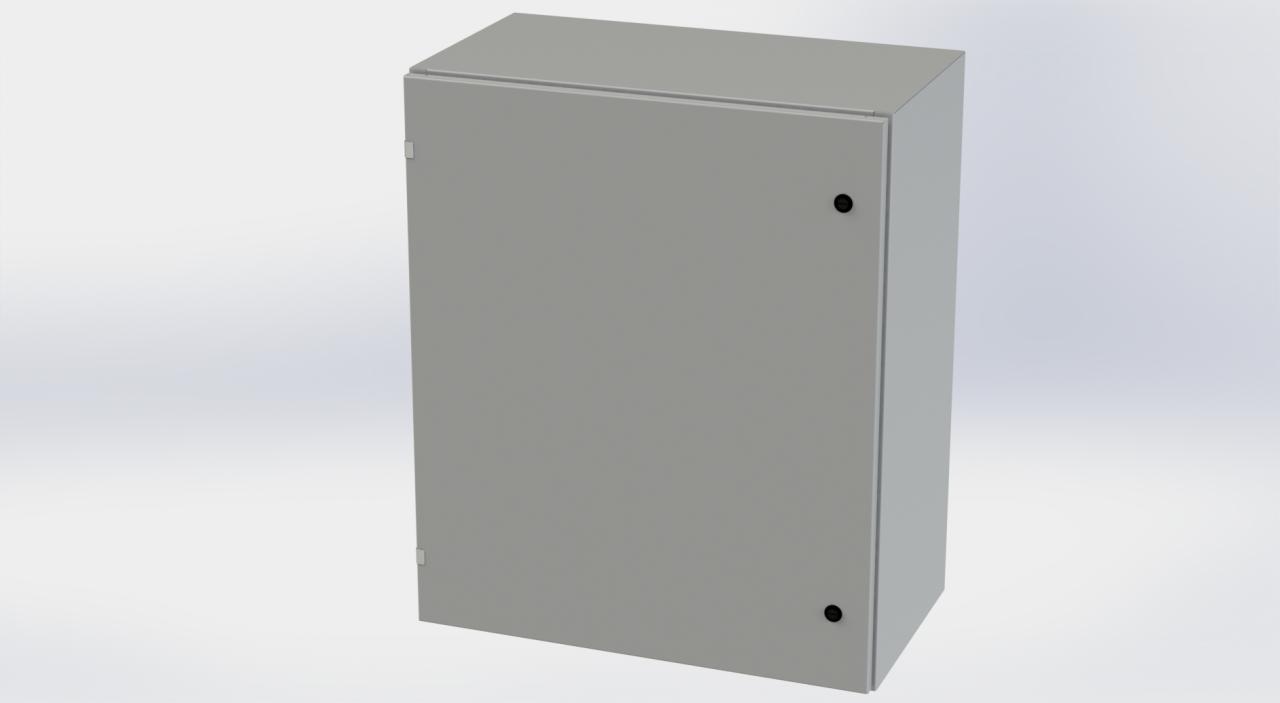

Saginaw EL Enclosure SCE36EL3016LP 36x30x16 Inch

$ 525

Quantity

Saginaw Control & Engineering Enclosure SCE36EL3016LP, NEMA 4/12/13

36"X30"X16", gray powder coating

Have a Question?

Product Specifications:

Part Number: SCE-36EL3016LP

Description: EL Enclosure

Height: 36.00"

Width: 30.00"

Depth: 16.00"

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil & water resistant gasket
Collar studs 3/8-16 provided for mounting optional panels.
Concealed hinges.
Removable and interchangeable doors.
Black quarter turn latches.
Latches are opened or closed with a screwdriver.
Mounting holes in back of enclosure.
Mounting hardware, sealing washer and hole plug included.
Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
Ground studs on door and body.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Product Family Features

Minimum width body flange for maximum door opening

Hidden hinges for clean aesthetic appearance

Door removable

Seamless foam-in-place one-piece gasket for oil-tight and dust-tight seal

Panel-mounting studs for optional subpanels and accessories

Removable data pocket

UL listed, File #E69392

CSA certified

Rated NEMA 4, 12, and 13

ANSI 61 gray polyester powder coating inside and out with white panels

Family Description

The Saginaw Eniroline Series features NEMA 4, NEMA 12, and NEMA 13 rated enclosures and panels. The EL Series electrical boxes are attractive, single-door wall-mounted enclosures designed to safely house electrical and pneumatic components. Indispensable for building automation systems, BAS, and HVAC applications, Saginaw enclosures are manufactured from 14 gauge steel. Seams for each enclosure are continuously welded and ground smooth, so there are no holes and knock-outs. These NEMA enclosures provide protection from dust, dirt, oil, and water.

Est. Ship Weight: 114.00 lbs
