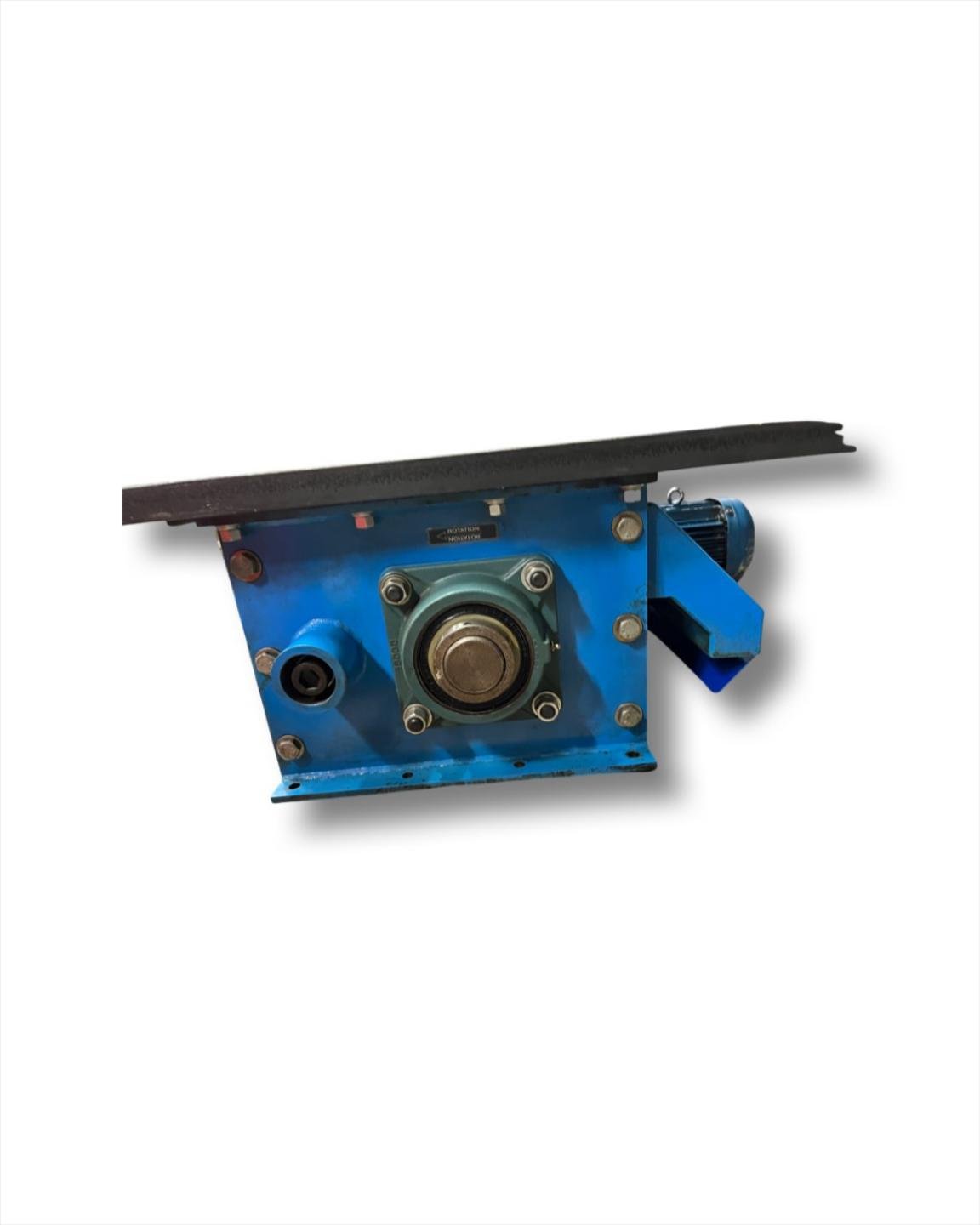

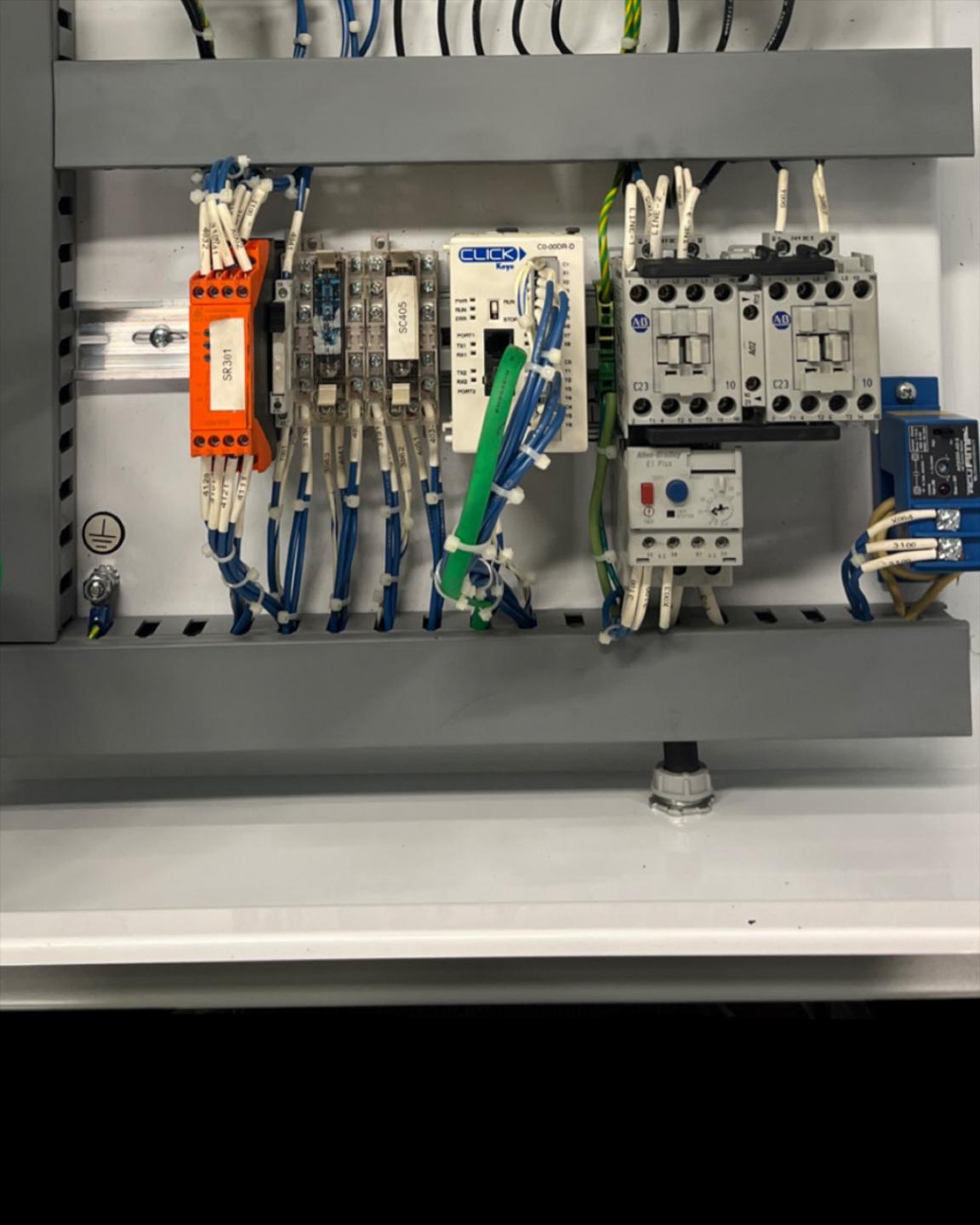

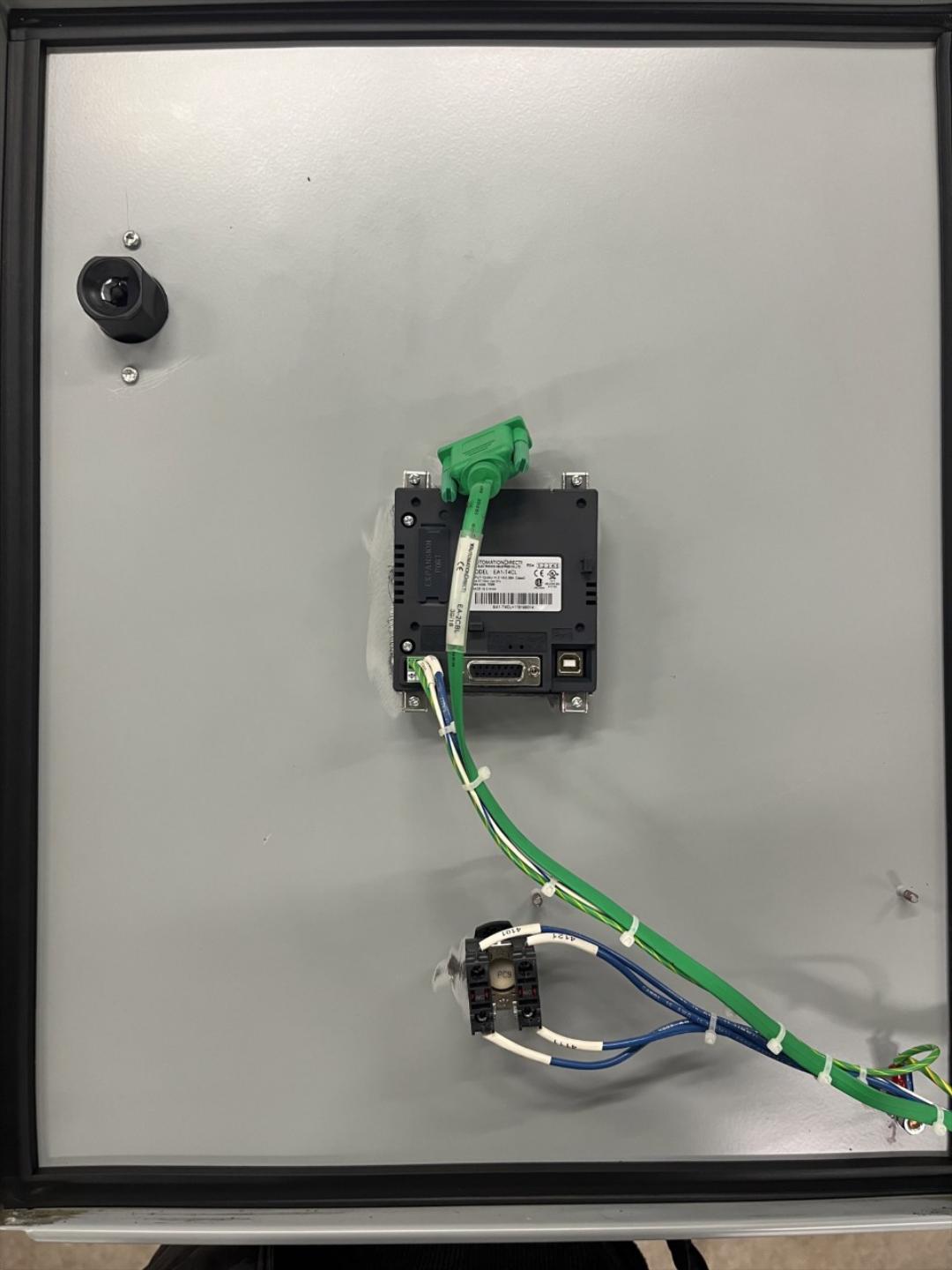

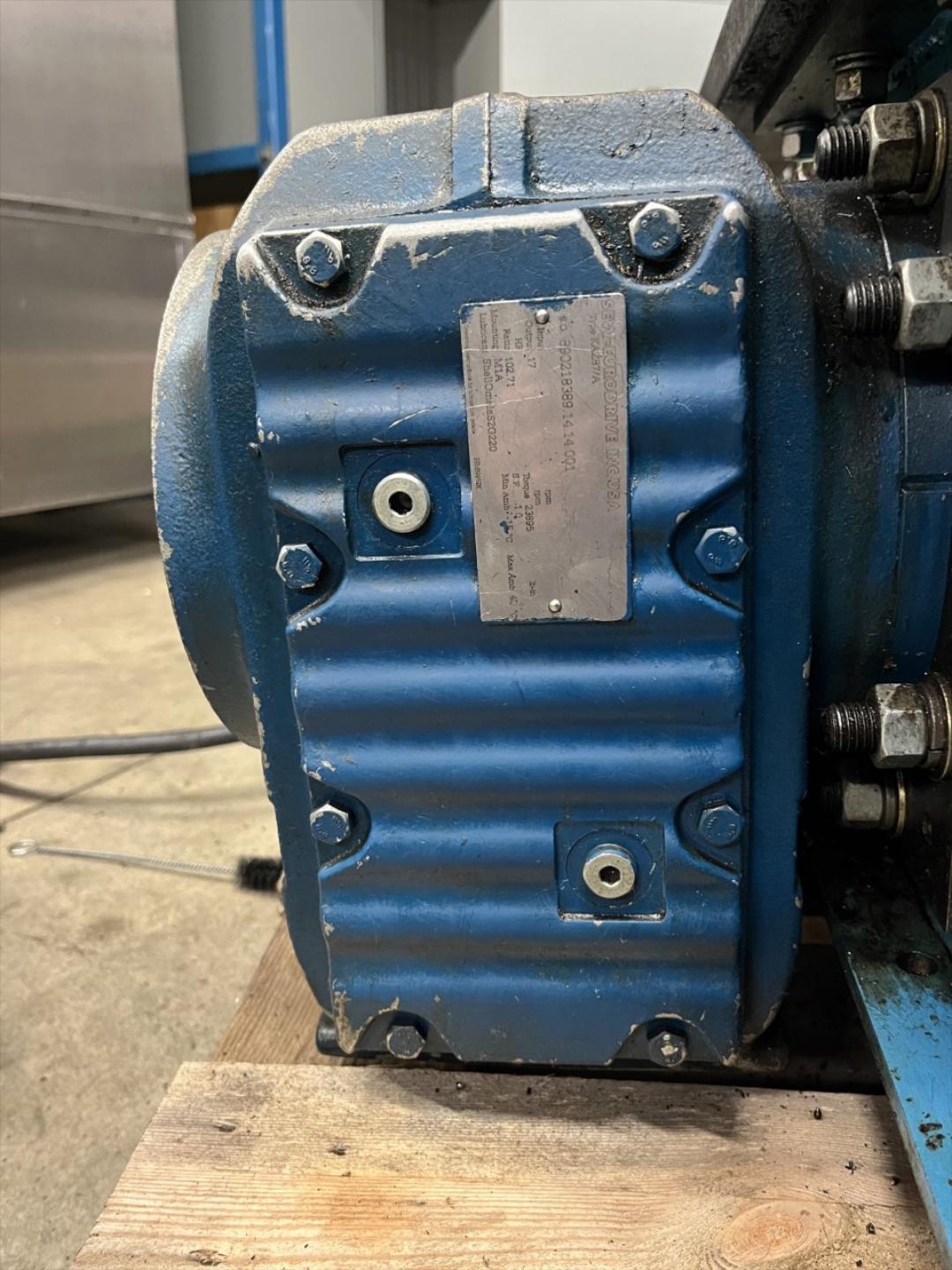

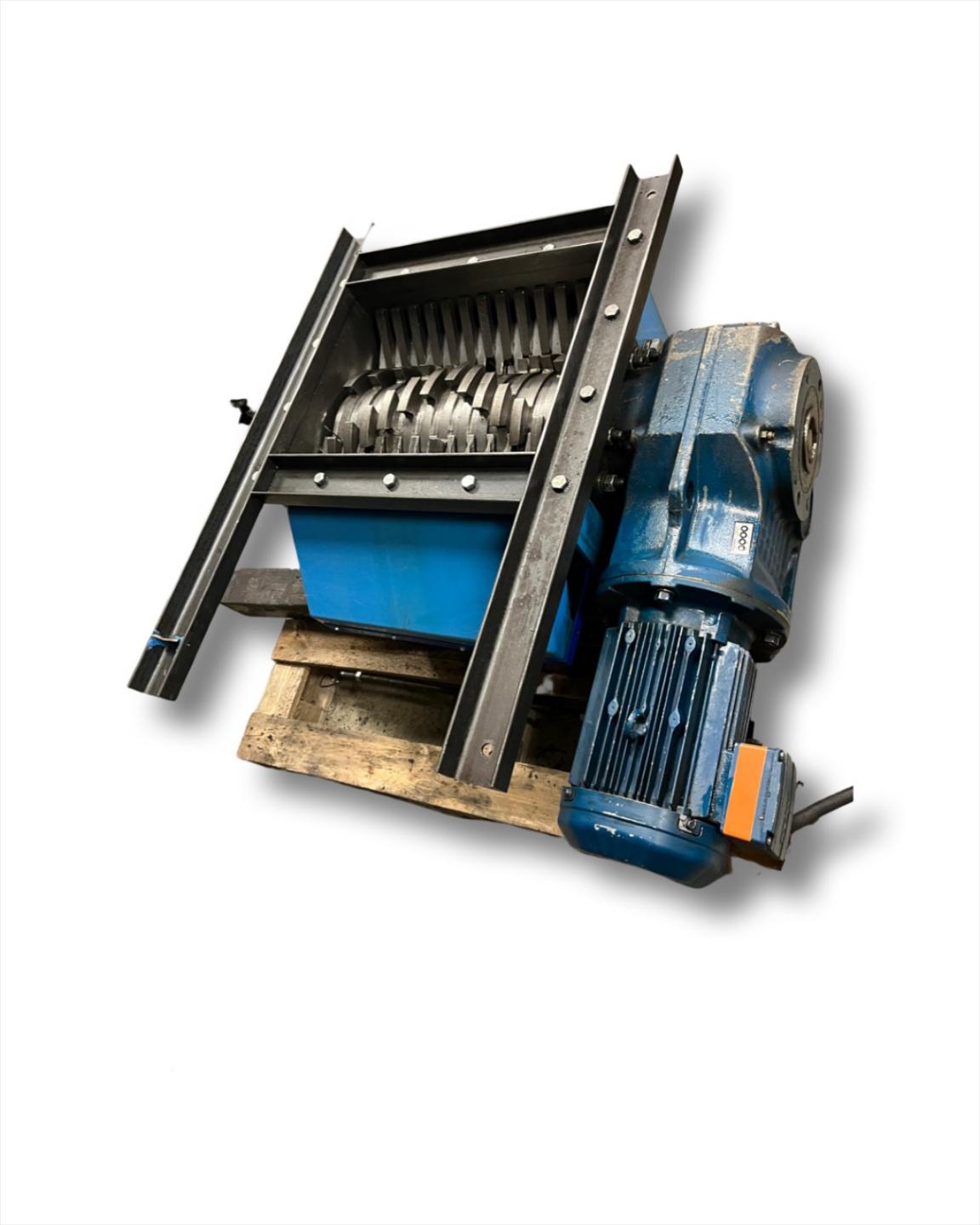

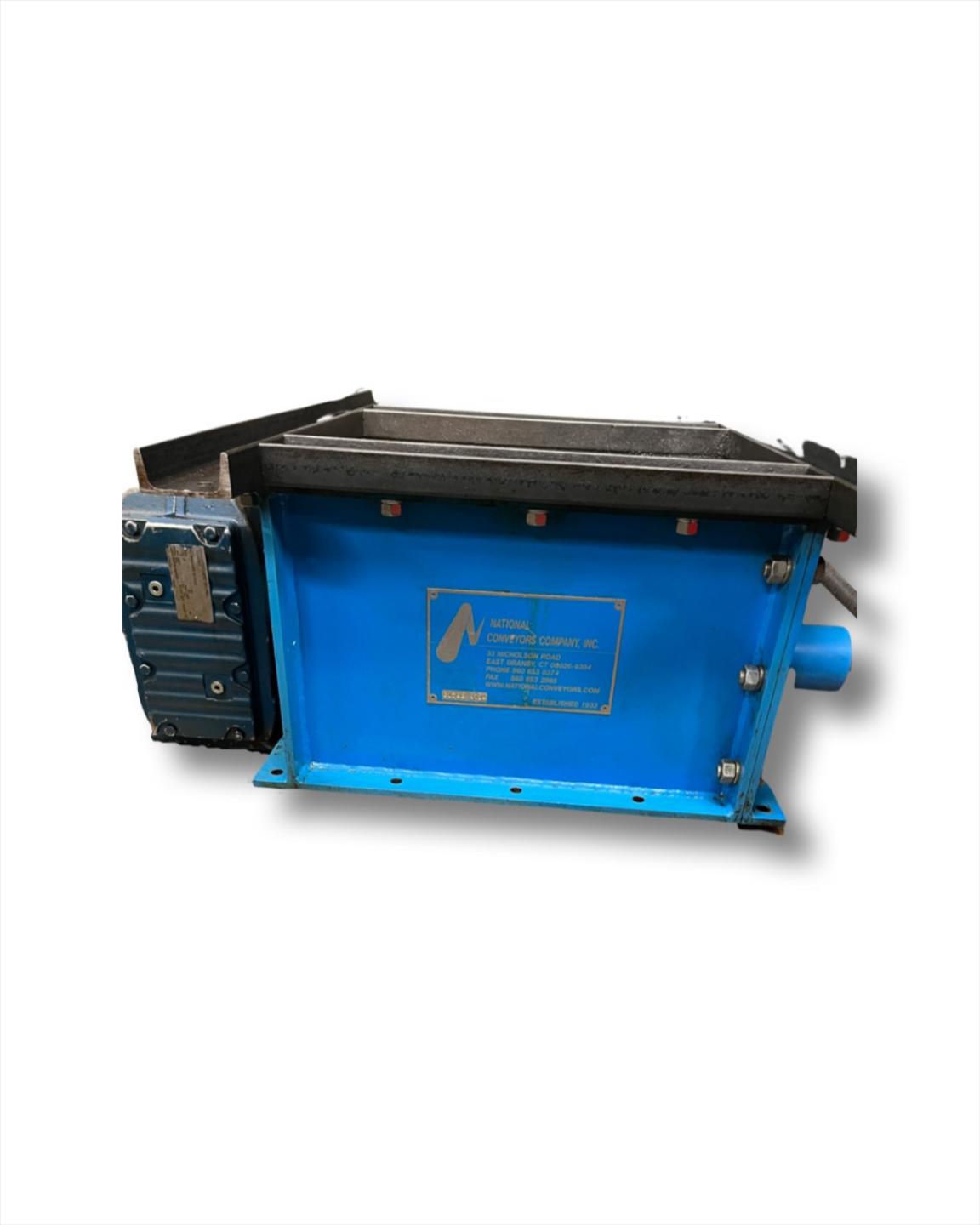

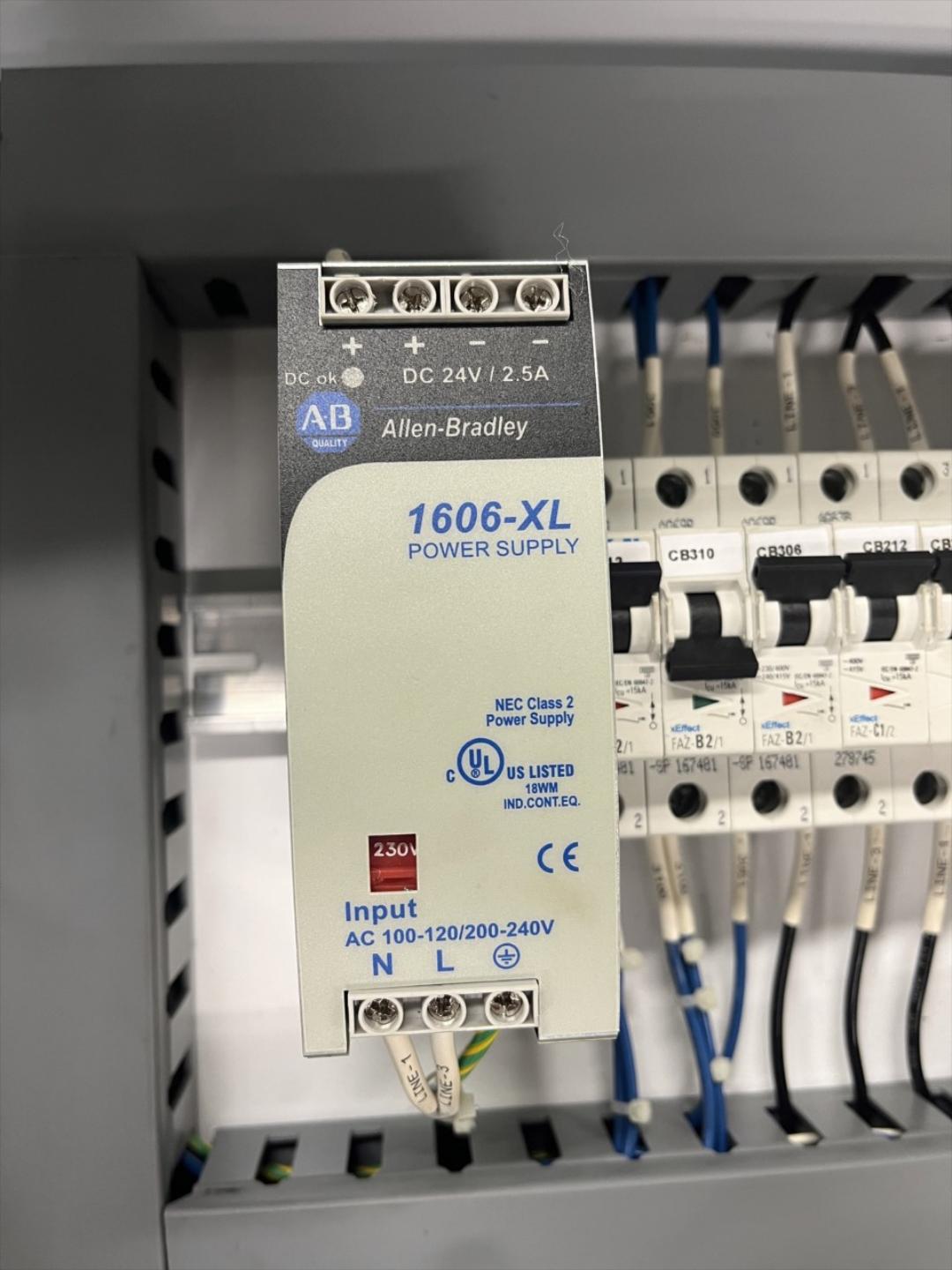

National Conveyors Company Single Roll Machine Tool Shredder with PLC Control Panel 5HP Motor

Metal chip processing refers to the method of collecting and treating metal machining wastes through the use of metal crushers, metal shredders, metal chip wringers (metal chip centrifuges), metal briquetters and other specialized equipment interconnected with metal chip conveyors so as to comprise a complete metal chip processing system.The principal purposes of such systems are to:

• Separate residual machining fluids (coolants and oils) from metal chip waste for recycle or disposal.
• Produce a drip free metal waste product meeting DEP and EPA requirements, which may be transported without contaminating the environment.
• This processed material could command a premium market price.
• Further processing of the "dry" chips is possible using compaction technology known as briquetting.
• Metal chip briquetters compress metal chips into a solid briquette form with benefits in material handling and the re-melting process.
• Such metal chip systems may be custom designed or largely pre-engineered - using standard components.
• Occasionally, metal chip systems are used to treat (dewater) grinding sludge (swarf).

Bushy, stringy metal turnings such as those shown above must be crushed or shredded into smaller chips to satisfy three needs:

1. Effective extraction and reclamation of cutting fluids from such material. The use of a chip wringer (centrifuge) requires feed particle size be no larger than about 3" (75mm)
2. Briquetting of such material requires that feed particle size be no larger than about 3" (75mm).
3. If metal turnings are being processed these should be crushed or shredded for ease of handling and bulk transport. Moreover, the price received for such scrap will be enhanced by offering a shoveling grade (sized) chip product to a scrap reclaimer.
