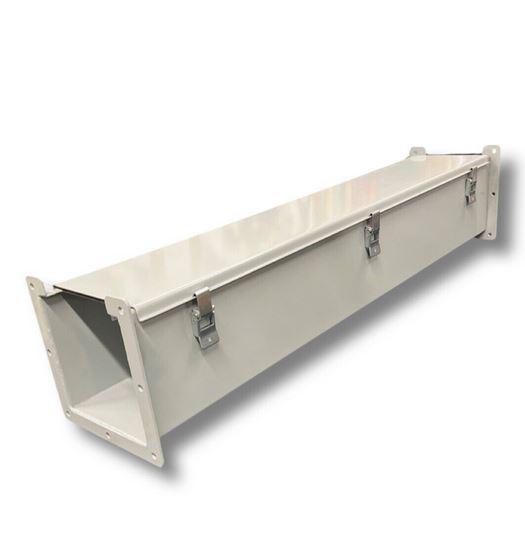

Hoffman Industrial Wireway Hinged Cover Type 12 - 6.00 Inch
Hoffman Industrial Wireway Hinged Cover Type 12 - 6.00 Inch

Hoffman Industrial Wireway Hinged Cover Type 12 - 6.00 Inch

$ 249 99 - $ 519 99
Lay-in Hinged Cover Type 12 Gray, Steel
  • Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants

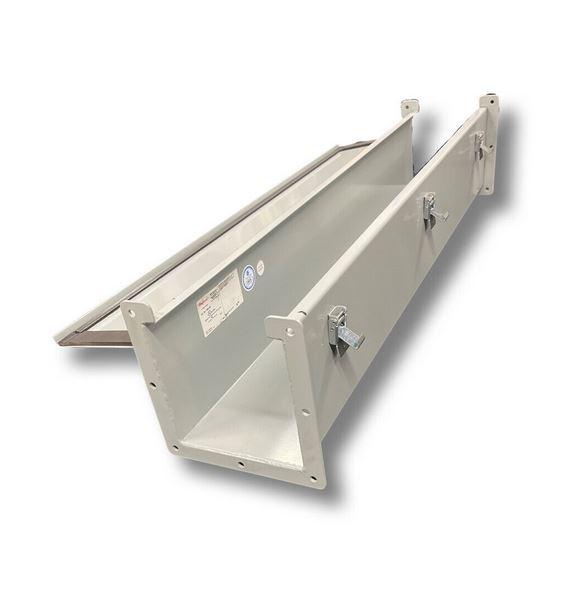

  • This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling
Have a Question?
HOFFMAN
  • Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
  • This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling

STRAIGHT SECTION PRODUCT SPECIFICATIONS
  • F66L36
    • Type: Straight Section
    • Height: 6 in / 152 mm
    • Width: 6 in / 152 mm
    • Depth: 36 in / 914 mm
  • F66L60
    • Type: Straight Section
    • Height: 6 in / 152 mm
    • Width: 6 in / 152 mm
    • Depth: 60 in / 1524 mm

  • Protection Rating: NEMA Type 12; IP54
  • Material: Mild Steel
  • Sealing Plate Type: Flat
  • Sealing Plate Quantity: 1
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
  • Thickness: 14 ga / 1.9 mm
DRAWINGS AND DOCUMENT DOWNLOADS

Approval Agency Certificate
Installation Manual / Instruction Sheet - Lay-in Wireway Hinged-Cover Instruction Manual


ADDITIONAL PRODUCT DETAILS

Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.

Each sealing plate also includes one gasket and one set of screws to join sections.

Certified by Canadian Standards Association.

BULLETIN NUMBER
F10
Industry Standards
Certified by Canadian Standards Association.
60
